ZEISS Inverted Microscopes for Materials Science

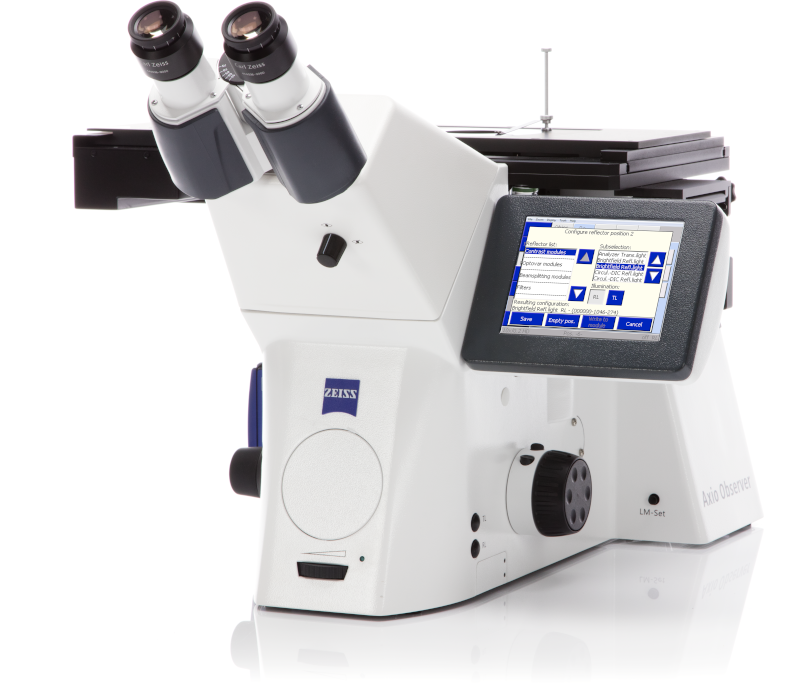

  • Axio Observer 3/5/7

    Flexible Materials Microscopy — Routine to Advanced


    A modular inverted microscope platform that can be configured for everything from routine inspection and metallography to advanced automated materials analysis. Start with Axio Observer 3 for high-quality routine microscopy, then add greater automation and functionality with Observer 5 or 7 as your requirements grow.

    Explore Axio Observer 3/5/7

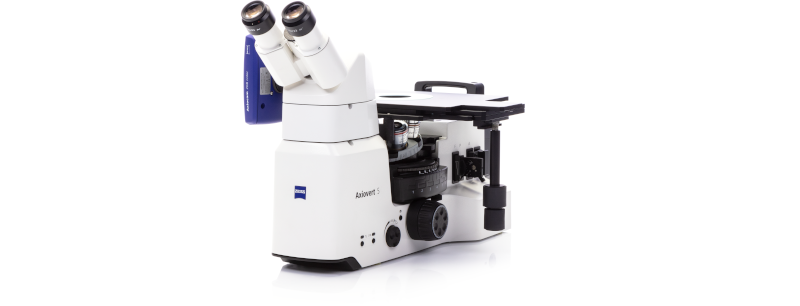

  • Axiovert 5/7

    Compact & Efficient Materials Microscopy

    A space-efficient inverted microscope platform for routine materials inspection, documentation and metallography. Axiovert 5 provides straightforward manual operation, while Axiovert 7 adds motorized focus and stage options for increased workflow automation.

    Explore Axiovert 5/7
1 2

What Is an Inverted Materials Microscope?

In an inverted microscope, the objectives are positioned below the sample and image upward toward the inspection surface. This is especially useful in metallography and materials inspection because prepared samples can be placed polished-side down on the stage, providing a consistent inspection plane while leaving generous space above the microscope for large, heavy or irregular specimens.

ZEISS inverted microscopes are used for metallography, failure analysis, quality control, electronics, semiconductor research and advanced materials applications. Systems can range from straightforward routine inspection microscopes to highly automated platforms for quantitative materials analysis.

Why Choose an Inverted Microscope?

  • Fast Sample Changes

    Once the microscope is focused on the inspection plane, similarly prepared samples can be exchanged with minimal refocusing. This can significantly improve throughput when inspecting multiple metallographic specimens.

  • Room for Larger Samples

    Because the objectives are below the stage, an inverted microscope provides generous space above the specimen. This makes it well suited for larger, heavier or irregularly shaped components that can be difficult to accommodate on an upright microscope.

  • Ideal for Metallography

    Prepared metallographic samples can simply be placed polished-side down on the stage. This makes inverted microscopy particularly well suited for metallographic investigation, microstructure evaluation and materials analysis.

  • Routine Through Advanced Workflows

    An inverted microscope does not have to be an advanced research system. Systems can range from straightforward manual configurations for routine inspection to motorized platforms for automated imaging and quantitative analysis.

What Are Inverted Microscopes Used for in Materials Science?

Inverted microscopes are widely used in industrial laboratories, quality control and materials research for applications including:

  • Metallography and microstructure evaluation
  • Failure analysis
  • Quality control and incoming inspection
  • Weld and heat-affected-zone examination
  • Coating and layer inspection
  • Grain structure analysis
  • Non-metallic inclusion analysis
  • Phase and microstructure analysis
  • Component surface inspection
  • Research and development

Depending on the microscope configuration and software, these workflows can range from simple visual inspection and image documentation to automated measurements and standardized materials analysis.

Should I Use an Inverted or Upright Microscope?

  • Choose an Inverted Microscope When…

    • You routinely inspect mounted metallographic samples
    • You inspect many samples and want fast sample changes
    • Your specimens may be large, heavy or irregularly shaped
    • Metallography is a major part of your laboratory workflow

  • Consider an Upright Microscope When…

    • You work with a wide variety of specimen geometries
    • You need access to the sample from above
    • Your specimens fit comfortably beneath the objectives
    • Your application requires an upright-specific configuration

Choose the Right Level of Flexibility

Axio Observer 3/5/7 — Maximum Flexibility
Best choice when long-term flexibility matters. Start with an Axio Observer 3 configured for routine metallography, inspection and documentation, while retaining a platform designed for expanded contrast methods, automation and advanced analysis as requirements evolve.

Axiovert 5/7 — Compact & Streamlined
Best choice when compact size and streamlined operation are the priorities. An excellent solution for routine materials workflows where the broader configurability of the Axio Observer platform is not required.

Not Sure Which Microscope Is Right for Your Samples?

Choosing between an upright and inverted microscope — or between Axiovert and Axio Observer — depends on your samples, preparation method and workflow. Our microscopy specialists can review your application and help configure the appropriate ZEISS microscope, objectives, camera and software.

Discuss Your Application
