Axio Zoom.v16 MAT

Axio Zoom.v16

Macro Meets Micro.

Large Field-of-View
High Resolution
16:1 Zoom Range (0.7x - 112x)

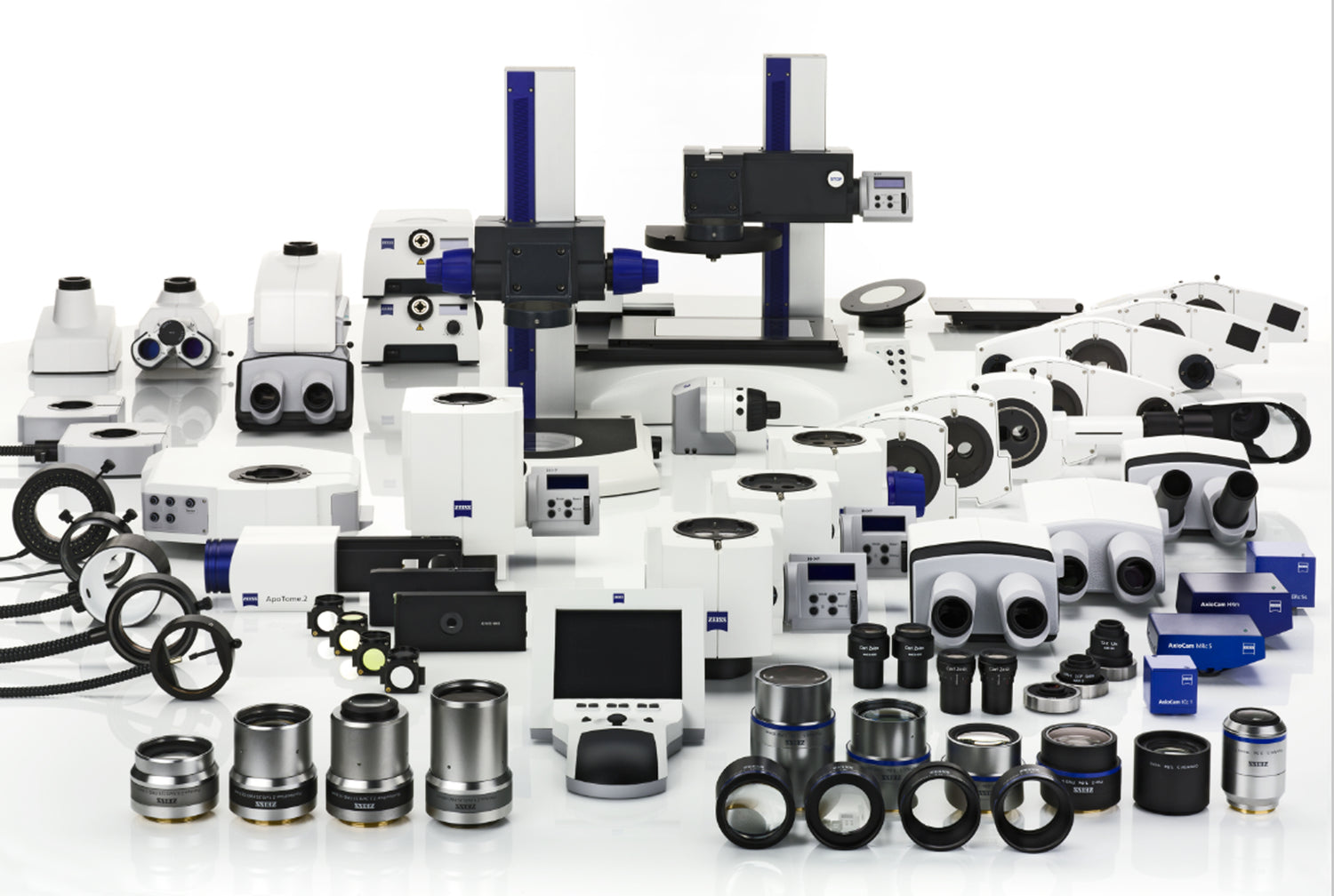

Axio Zoom.v16 Family

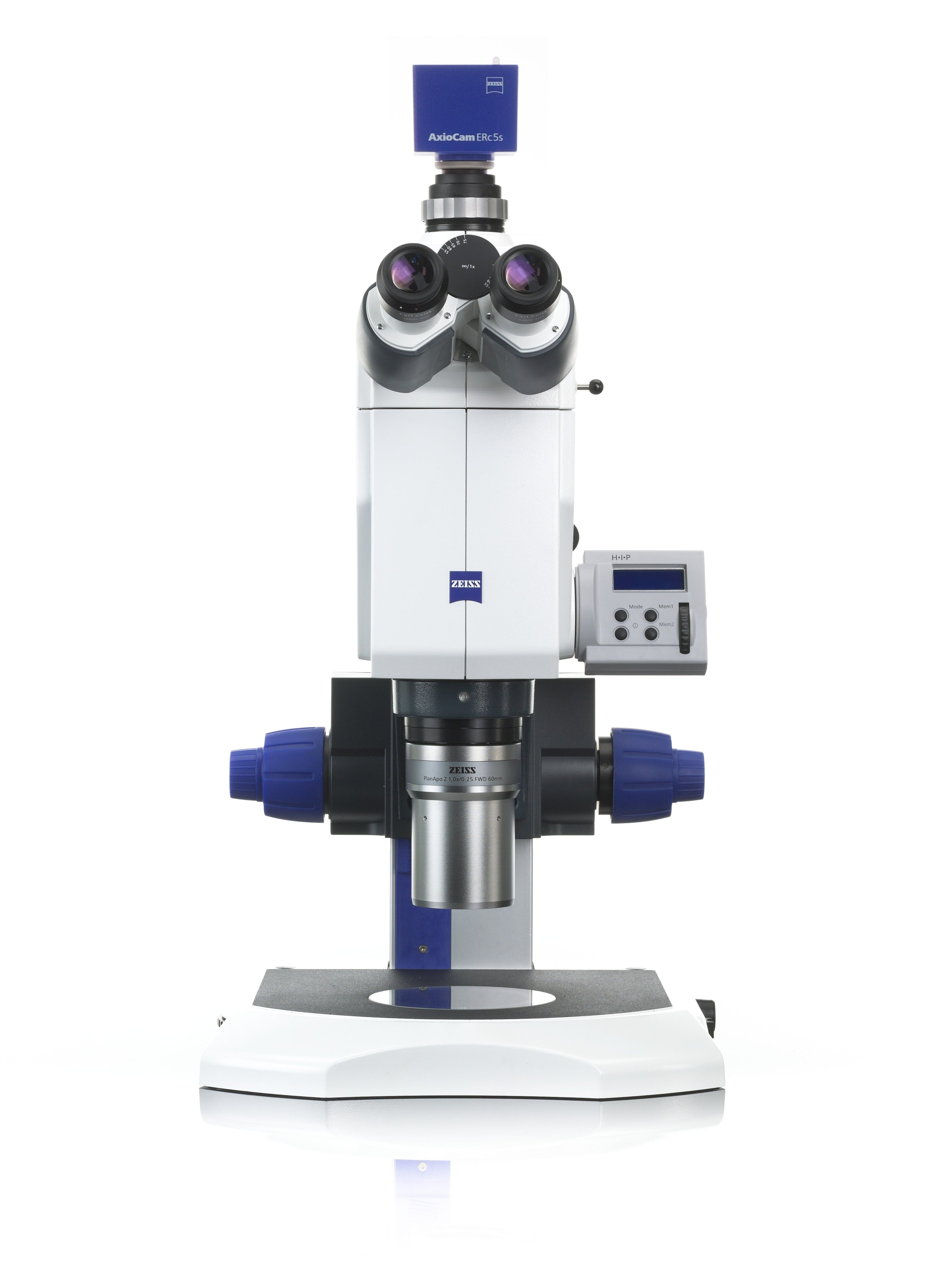

Manual Configuration – Intuitive and Cost-Effective
Simplicity for Essential Imaging Tasks
- Manual Focus
- Electronic Zoom
- Apochromatic Optics
A smart choice for labs seeking ZEISS quality without automation.

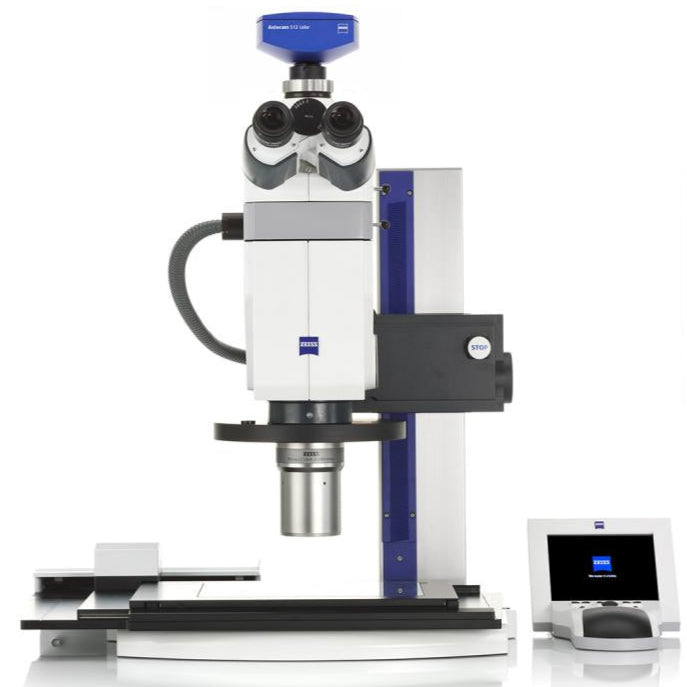

Motorized Configuration – Precision with Repeatability
Your Answer for High Quality Imaging
- Motorized Focus and/or Stage
- Electronic Zoom
- Apochromatic Optics
Ideal imaging tool for all materials labs.
Digital Configuration – Fully Automated Imaging Power
Documentation Made Easy
- Screen-based workflows
- Electronic Zoom
- Apochromatic Optics
Perfect for automated workflows.

1 3

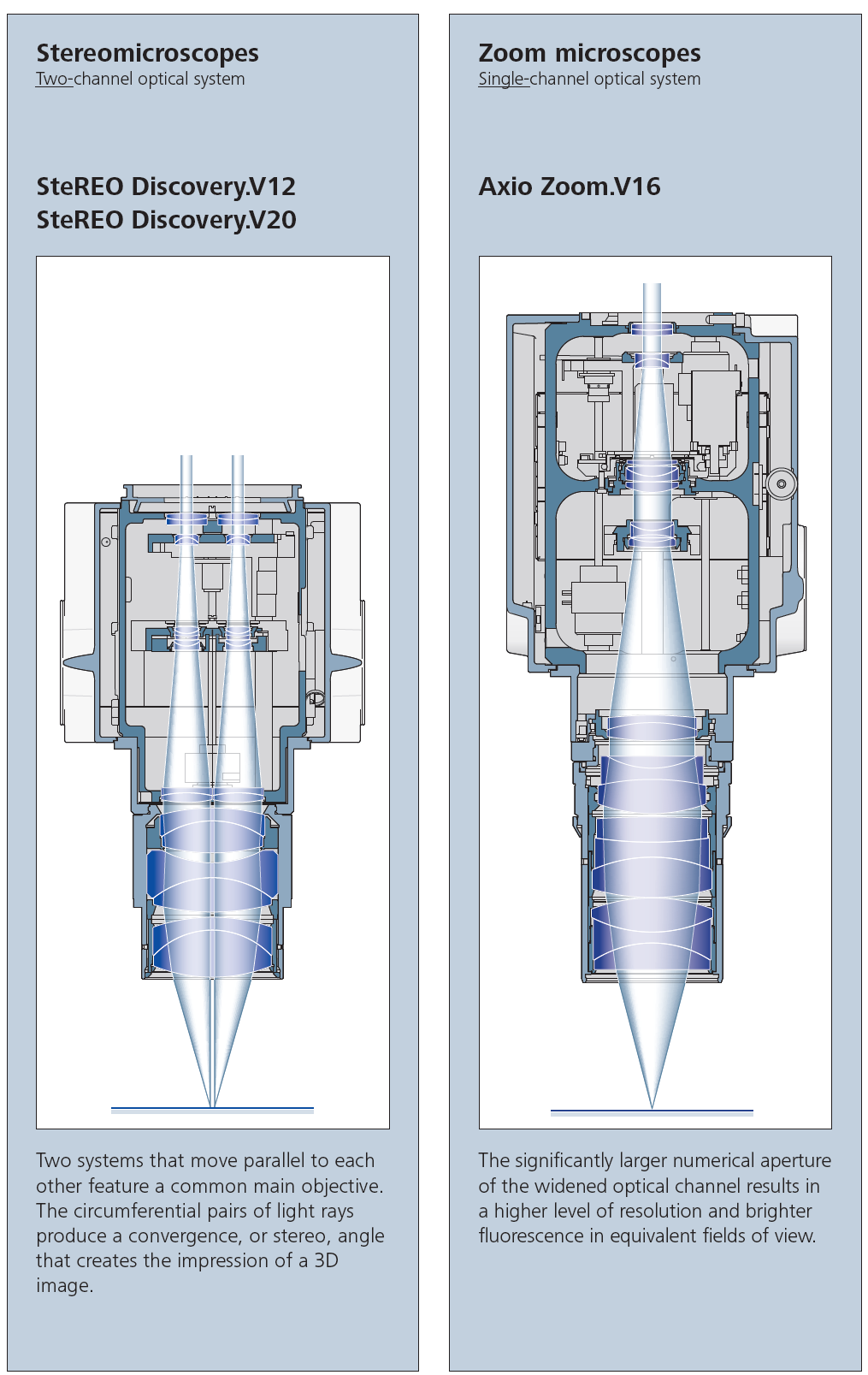

Single-Channel Optical System

Capture more light
Higher Resolution
Parallax Free Imaging

The Axio Zoom.v16 is the perfect balance between a stereo and a compound microscope. Axio Zoom.V16 bridges the gap between traditional stereo microscopy and compound microscopy, combining a large field of view with high optical resolution for detailed imaging of larger specimens.

The single-channel optical system also eliminates parallax which is inherently present in stereo microscopes. Parallax introduces an angular bias to your image which can create a misleading image of your samples. Our Discovery series of stereo microscopes can compensate for parallax, however, you can have confidence in the Axio Zoom to produce reliable data for all images.

See More Detail with Axio Zoom.V16

When inspecting small features, magnification alone does not determine image quality. Optical resolution determines whether closely spaced features can actually be distinguished from one another.

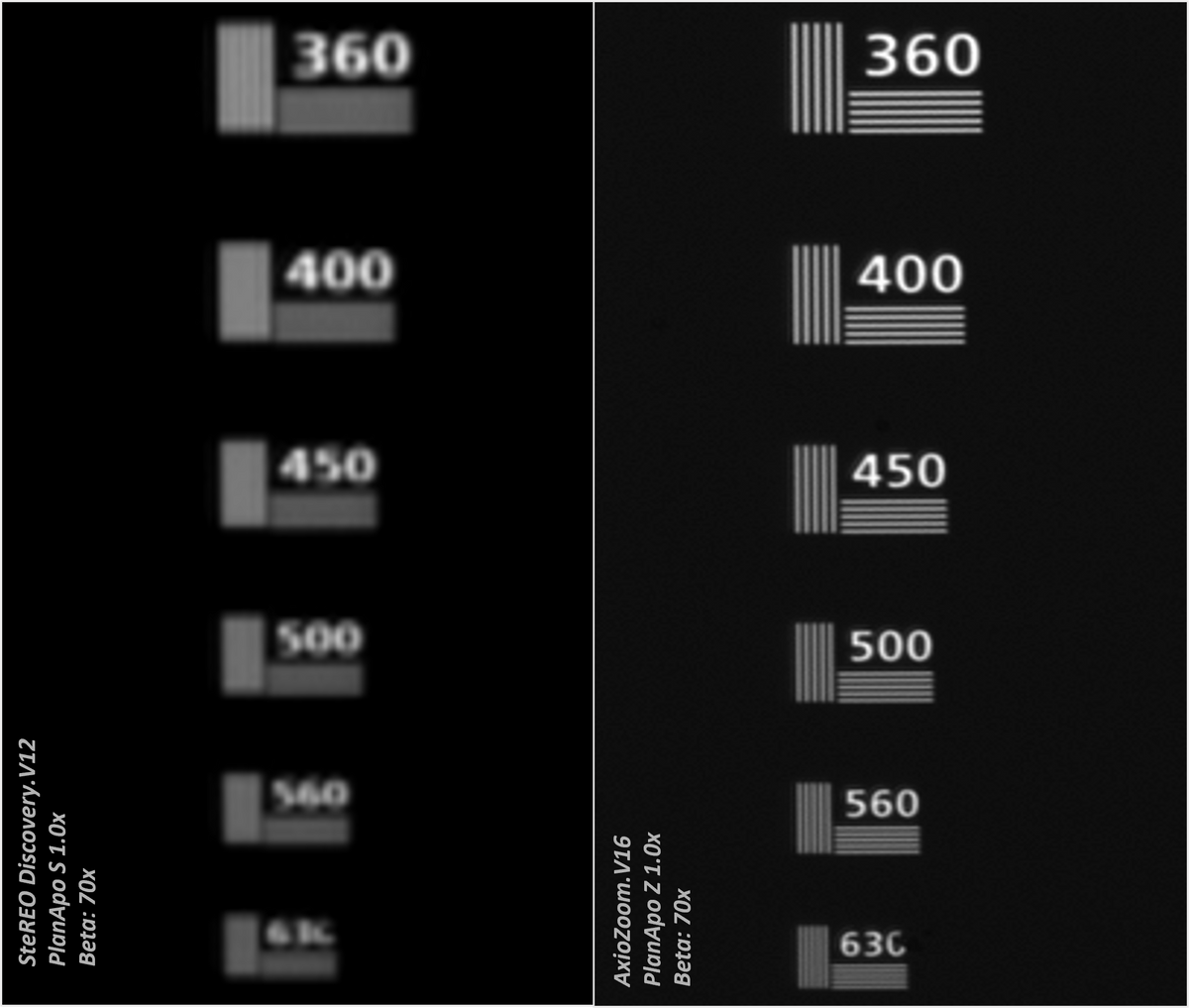

The comparison above shows the same line-pair resolution target imaged at 70× with a ZEISS SteREO Discovery.V12 and a ZEISS Axio Zoom.V16. While both systems provide the same nominal magnification, Axio Zoom.V16 resolves substantially finer line patterns and produces greater separation between closely spaced features.

This illustrates an important distinction between the two microscope platforms: a stereo microscope is optimized for three-dimensional observation and working distance, while Axio Zoom.V16 is designed for high-resolution imaging across a large field of view.

For materials science and industrial applications, the additional resolving power can be particularly valuable when examining fine surface features, electronics, semiconductor components, fractures, defects and other small structures.

Same magnification. More resolved detail.
